Zarmpi, P; Tabosa, M A M; Vitry, P; Bunge, A L; Belsey, N; Tsikritsis, D; Woodman, T J; Delgado-Charro, M B; Guy, R H (2023) Confocal Raman spectroscopic characterisation of dermatopharmacokinetics ex vivo. Molecular Pharmaceutics, 20 (11). pp. 5910-5920.

Preview

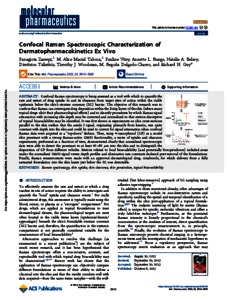

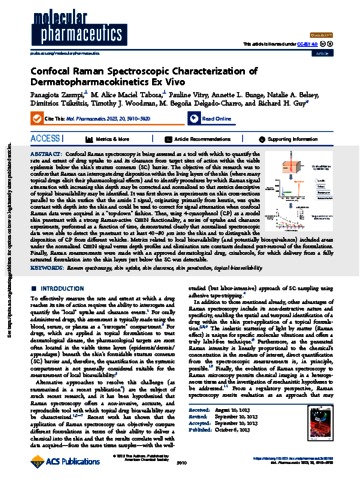

Text eid9908.pdf - Published Version Available under License Creative Commons Attribution. Download (3MB) | Preview

Abstract

Confocal Raman spectroscopy is being assessed as a tool with which to quantify the rate and extent of drug uptake to, and its clearance from, target sites of action within the viable epidermis below the skin’s stratum corneum barrier. The objective of this research was to confirm that Raman can interrogate drug disposition within the living layers of the skin (where many topical drugs elicit their pharmacological effects) and to identify procedures by which Raman signal attenuation with increasing skin depth may be corrected and normalised so that metrics descriptive of topical bioavailability may be identified. It was first shown in experiments on skin cross-sections parallel to the skin surface that the Amide I signal originating primarily from keratin was quite constant with depth into the skin and could be used to correct for signal attenuation when confocal Raman data were acquired in a ‘top-down’ fashion. Then, using 4-cyanophenol (CP) as a model skin penetrant with a strong Raman-active C≡N functionality, a series of uptake and clearance experiments, performed as a function of time, demonstrated clearly that normalised spectroscopic data were able to detect the penetrant to at least 40-80 µm into the skin, and to distinguish the disposition of CP from different vehicles. Metrics related to local bioavailability (and potentially bioequivalence) included areas under the normalised C≡N signal versus depth profiles and elimination rate constants deduced post-removal of the formulations. Finally, Raman measurements were made with an approved dermatological drug, crisaborole, for which delivery from a fully saturated formulation into the skin layers just below the stratum corneum was detectable.

Item Type:	Article
Keywords:	Raman specctroscopy; skin uptake; skin clearance; skin penetration; topical bioavailablility
Subjects:	Nanoscience > Surface and Nanoanalysis
Divisions:	Chemical & Biological Sciences
Identification number/DOI:	10.1021/acs.molpharmaceut.3c00755
Last Modified:	24 Jan 2024 15:43
URI:	https://eprintspublications.npl.co.uk/id/eprint/9908
