Tucker, D J L; Edler, F; Zuzek, V; Bojkovski, J; Garcia-Izquierdo, C; Parrondo, M; Sindelarova, L; Arifovic, N (2022) Thermoelectric stability of dual-wall and conventional type K and N thermocouples. Measurement Science and Technology, 33 (7). 075003

Preview

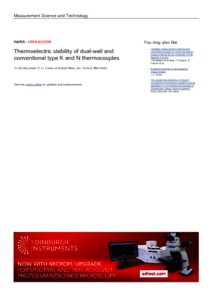

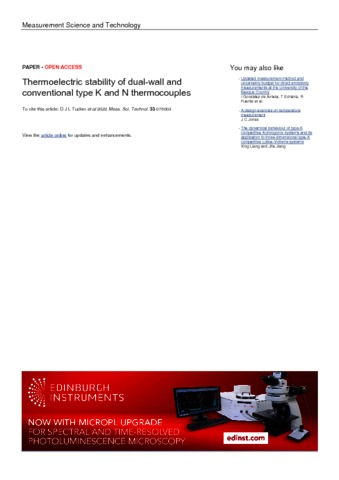

Text eid9565.pdf - Published Version Available under License Creative Commons Attribution. Download (1MB) | Preview

Abstract

Mineral insulated metal sheathed (MIMS) base metal thermocouples experience thermoelectric drift over their lifetime caused by use at high temperatures and metallurgical changes, causing spurious measurement errors. CCPI Europe Limited and University of Cambridge have designed a MIMS thermocouple with an additional inner sheath, in order to protect the thermoelements from the effects that cause thermoelectric drift. The performance of these dual-wall thermocouples and conventional type N and type K thermocouples are assessed at six different National Metrology Institutes (NMIs) using two different testing regimes: isothermal testing at 1200 ºC, and thermal cycling tests between 300 ºC and 1150 ºC. The investigation demonstrates that in both testing regimes, the type N dual-wall thermocouples showed a significantly reduced thermoelectric drift by about a factor of three compared to the conventional thermocouples. There was no significant difference between the type K dual-wall and conventional type K thermocouples in the isothermal tests, and the type K dual-wall thermocouples showed greater drift than the conventional thermocouples in the thermal cycling tests, but the conventional type K thermocouples were less robust than the dual-wall type K thermocouples. The results presented in this paper represent an impartial assessment of the thermoelectric stability of both dual-wall thermocouples and conventional thermocouples, which may provide assurance to potential users.

Item Type:	Article
Keywords:	hermocouples, MIMS, dual-wall, thermoelectric drift, type N, type K
Subjects:	Engineering Measurements > Thermal
Divisions:	Thermal & Radiometric Metrology
Identification number/DOI:	10.1088/1361-6501/ac57ee
Last Modified:	24 May 2023 13:24
URI:	https://eprintspublications.npl.co.uk/id/eprint/9565
