Winiarski, B; Gholinia, A; Mingard, K; Gee, M; Thompson, G; Withers, P J (2021) Correction of artefacts associated with large area EBSD. Ultramicroscopy, 226. 113315

Preview

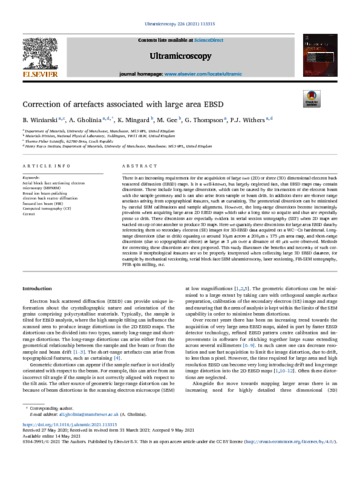

Text eid9390.pdf - Published Version Available under License Creative Commons Attribution. Download (11MB) | Preview

Abstract

There is an increasing requirement for the acquisition of large two (2D) or three (3D) dimensional electron back scattered diffraction (EBSD) maps. It is a well-known, but largely neglected fact, that EBSD maps may contain distortions. These include long-range distortions, which can be caused by the interaction of the electron beam with the sample geometry and it can also arise from sample or beam drift. In addition there are shorter range artefacts arising from topographical features, such as curtaining. The geometrical distortions can be minimised by careful SEM calibrations and sample alignment. However, the long-range distortions become increasingly prevalent when acquiring large area 2D EBSD maps which take a long time to acquire and thus are especially prone to drift. These distortions are especially evident in serial section tomography (SST) when 2D maps are stacked on top of one another to produce 3D maps. Here we quantify these distortions for large area EBSD data by referencing them to secondary electron (SE) images for 3D-EBSD data acquired on a WC–Co hardmetal. Longrange distortions (due to drift) equating to around 10μm across a 200μm x 175 μm area map, and short-range distortions (due to topographical effects) as large as 3 μm over a distance of 40 μm were observed. Methods for correcting these distortions are then proposed. This study illustrates the benefits and necessity of such corrections if morphological features are to be properly interpreted when collecting large 3D EBSD datasets, for example by mechanical sectioning, serial block face SEM ultramicrotomy, laser sectioning, FIB-SEM tomography, PFIB spin milling, etc.

Item Type:	Article
Keywords:	Serial block face sectioning electron microscopy (SBFSEM) Broad ion beam polishing electron back scatter diffraction focused ion beam (FIB) Computed tomography (CT) Cermet
Subjects:	Advanced Materials > Microstructural Characterisation
Divisions:	Engineering
Identification number/DOI:	10.1016/j.ultramic.2021.113315
Last Modified:	23 Mar 2022 15:13
URI:	https://eprintspublications.npl.co.uk/id/eprint/9390
