Foylan, S; Schniete, J K; Kolln, L S; Dempster, J; Hansen, C G; Shaw, M; Bushell, T J; McConnell, G (2024) Mesoscale standing wave imaging. Journal of Microscopy, 295 (1). pp. 33-41. (In Press)

Preview

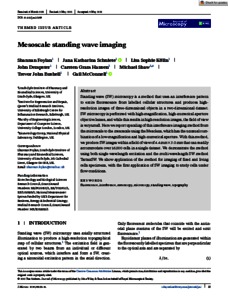

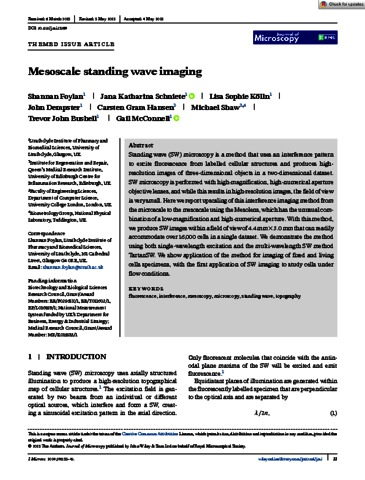

Text eid9953.pdf - Published Version Available under License Creative Commons Attribution. Download (1MB) | Preview

Abstract

Standing wave (SW) microscopy is a method that uses an interference pattern to excite fluorescence from labelled cellular structures and produces high-resolution images of three-dimensional objects in a two-dimensional dataset. SW microscopy is performed with high magnification, high numerical aperture objective lenses, and while this produces high resolution images, the field of view is very small. Here we report upscaling of this interference imaging method from the microscale to the mesoscale using the Mesolens, which has the unusual combination of a low magnification and high numerical aperture. With this method, we produce SW images within a field of view of 4.4 mm x 3.0 mm that can readily accommodate over 16,000 cells in a single dataset. We demonstrate the method using both single-wavelength excitation and the multi-wavelength SW method TartanSW. We show application of the method for imaging of fixed and living cells specimens, with the first application of SW imaging to study cells under flow conditions.

Item Type:	Article
Keywords:	Microscopy, Fluorescence Microscopy, Bioimaging
Subjects:	Biotechnology > Bio-Diagnostics
Divisions:	Chemical & Biological Sciences
Identification number/DOI:	10.1111/jmi.13189
Last Modified:	05 Sep 2024 13:32
URI:	https://eprintspublications.npl.co.uk/id/eprint/9953
