Zhang, Y; Shang, X; Xu, J; Guo, Y; Duan, L; Lu, X (2023) Novel compact waveguide filtering twist for computer numerical control machining. Electronics Letters, 59 (1). e12693

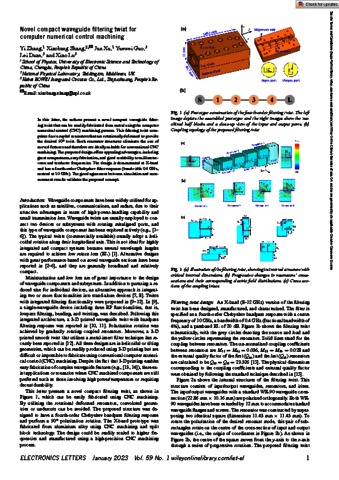

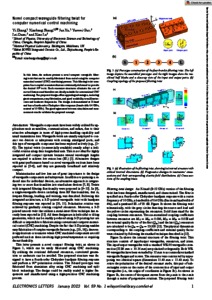

Preview

Text eid9675.pdf - Published Version Available under License Creative Commons Attribution. Download (1MB) | Preview

Abstract

In this letter, we present a novel compact waveguide filtering twist that can be readily fabricated from metal using the computer numerical control (CNC) machining process. This filtering twist comprises four coupled resonators that are rotationally deformed to provide the desired 90-degree twist. Such resonator structures eliminate the use of curved features and therefore are ideally suitable for conventional CNC machining. The proposed design offers appealing advantages, including great compactness, easy fabrication, and good scalability to millimetre-wave and terahertz frequencies. The design is demonstrated at X-band and has a fourth-order Chebyshev filter response (bandwidth 0.4 GHz, centred at 10 GHz). The good agreement between simulation and measurement results validates the proposed concept.

Item Type:	Article
Subjects:	Electromagnetics > RF and Microwave
Divisions:	Electromagnetic & Electrochemical Technologies
Identification number/DOI:	10.1049/ell2.12693
Last Modified:	27 Feb 2023 09:47
URI:	https://eprintspublications.npl.co.uk/id/eprint/9675
