Skinner, J; Salter, M J; Ridler, N M; Wang, Y; Salek, M; Stake, J; Jayasankar, D; Hesler, J; Durant, S (2022) Interlaboratory Comparison Of S-Parameter Measurements In WM-380 Waveguide at Frequencies from 500 GHz to 750 GHz. NPL Report. TQE 23

Preview

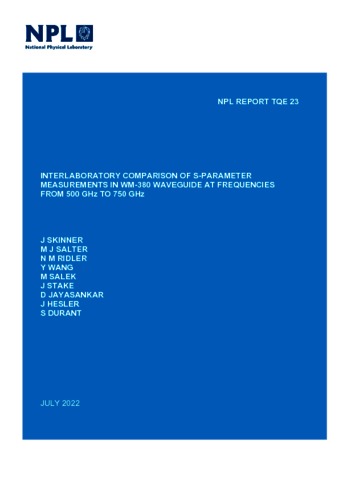

Text (NPL Report TQE 23) TQE23.pdf - Published Version Download (5MB) | Preview

Abstract

A recent measurement comparison exercise involving four participating laboratories was undertaken to establish understanding of the current state of the art of WM-380 rectangular metallic waveguide S-parameter measurement capabilities. This report details the comparison in which each participant measured four WM-380 waveguide devices operating from 500 GHz to 750 GHz. A summary of the results obtained is given, in addition to some observations and analysis.

Item Type:	Report/Guide (NPL Report)
NPL Report No.:	TQE 23
Keywords:	waveguide intercomparison millimetre-wave S-parameters WM-380 VNA calibration RF microwave
Subjects:	Electromagnetics > Electrical Measurement
Divisions:	Electromagnetic & Electrochemical Technologies
Identification number/DOI:	10.47120/npl.TQE23
